wire mesh size convert

Wire mesh is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. From Wikipedia

That page is for the wire mesh size convert, including size number SWG BWG INCH convert.

Size Number	SWG(MM)	BWG(MM)	Inch
0	8.230	8.636	0.340
1	7.620	7.620	0.300
2	7.010	7.214	0.284
3	6.401	6.579	0.259
4	5.893	6.045	0.238
5	5.385	5.588	0.220
6	4.877	5.156	0.203
7	4.470	4.572	0.180
8	4.064	4.191	0.165
9	3.658	3.759	0.148
10	3.251	3.404	0.134
11	2.946	3.048	0.120
12	2.642	2.769	0.109
13	2.337	2.413	0.095
14	2.032	2.108	0.083
15	1.829	1.829	0.072
16	1.626	1.651	0.065
17	1.422	1.473	0.058
18	1.219	1.245	0.049
19	1.016	1.067	0.042
20	0.914	0.889	0.035
21	0.813	0.813	0.032
22	0.711	0.711	0.028
23	0.610	0.635	0.025
24	0.559	0.559	0.022
25	0.508	0.508	0.020
26	0.457	0.457	0.018
27	0.417	0.406	0.016
28	0.376	0.356	0.014
29	0.345	0.330	0.013
30	0.315	0.305	0.012
31	0.295	0.254	0.010
32	0.274	0.229	0.009
33	0.254	0.203	0.008
34	0.234	0.178	0.007
35	0.213	0.127	0.005
36	0.193	0.102	0.004
37	0.173	*	*
38	0.152	*	*
39	0.132	*	*
40	0.122	*	*
41	0.112	*	*
42	0.102	*	*
43	0.091	*	*
44	0.081	*	*
45	0.071	*	*
46	0.061	*	*
47	0.051	*	*
48	0.041	*	*
49	0.031	*	*
50	0.025	*	*



MESH, How Many Mesh, Mesh Number, Mesh Count

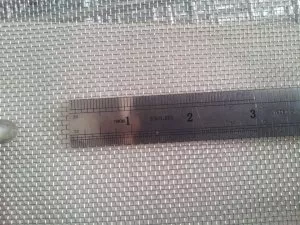

Both “Mesh” and “Mesh count” are the same meaning in alex.com.my, they means how many of the numbers of openings per linear inch. To determine the number of grids or grids, start at the center of a line and count the number of openings to a point exactly one inch away. For example, 14 mesh means there are 14 openings in 1 inch.



Opening, Space

Opening in alex.com.my is the length between two parallel wires, is measured from the inside faces of adjacent parallel wires.



Wire Diameter

Wire Diameter means the thickness of individual wires. For example, we provide 3 mesh with ready stock, the wire diameter is 1.0mm.

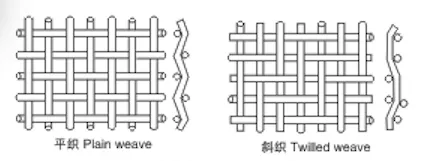

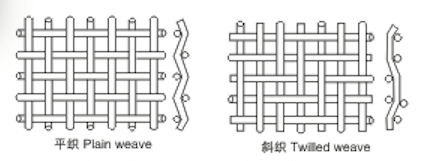

Plain weave, Twill weave

Plain weave and twill weave is the wire mesh weave method. The different is shown as below.



Open edge and closed edge

Closed edge means the edge or border of wire cloth that has a finished edge.



Material	Mesh Size	Wire Dia	Roll size	opening	Weave Method
sus 304	3mesh	1.0mm	1m*15m	7.46mm	plain weave
sus 304	5mesh	0.70mm	1m*15m	4.38mm	plain weave
sus 304	4mesh	1.00mm	1m*15m	5.35mm	plain weave
sus 304	6mesh	0.80mm	1m*15m	3.43mm	plain weave
sus 304	6mesh	0.80mm	1.2m*15m	3.43mm	plain weave
sus 304	8mesh	0.60mm	1m*15m	2.57mm	plain weave
sus 304	8mesh	0.60mm	1.2m*15m	2.57mm	plain weave
sus 304	10mesh	0.50mm	1m*15m	2.04mm	plain weave
sus 304	12mesh	0.58mm	1m*15m	1.54mm	plain weave
sus 304	14mesh	0.35mm	1m*15m	1.46mm	plain weave
sus 304	14mesh	0.60mm	1m*15m	1.21mm	plain weave
sus 304	16mesh	0.60mm	1m*15m	0.98mm	plain weave
sus 304	16mesh	0.40mm	1m*15m	1.18mm	plain weave
sus 304	18mesh	0.35mm	1m*15m	1.06mm	plain weave
sus 304	20mesh	0.20mm	1m*15m	1.07mm	plain weave
sus 304	20mesh	0.28mm	1m*15m	0.99mm	plain weave
sus 304	24mesh	0.35mm	1m*15m	0.70mm	plain weave
sus 304	24mesh	0.35mm	1.2m*15m	0.70mm	plain weave
sus 304	24mesh	0.35mm	1m*30m	0.70mm	plain weave
sus 304	26mesh	0.35mm	1m*15m	0.62mm	plain weave
sus 304	30mesh	0.25mm	1m*15m	0.59mm	plain weave
sus 304	40mesh	0.25mm	1m*15m	0.38mm	plain weave
sus 304	40mesh	0.19mm	1m*30m	0.44mm	plain weave
sus 304	40mesh	0.25mm	1m*30m	0.38mm	plain weave
sus 304	40mesh	0.30mm	1m*15m	0.33mm	twill weave
sus 304	50mesh	0.19mm	1m*15m	0.31mm	plain weave
sus 304	50mesh	0.25mm	1m*15m	0.25mm	twill weave
sus 304	50mesh	0.25mm	1.2m*15m	0.25mm	twill weave
sus 304	60mesh	0.15mm	1m*15m	0.27mm	plain weave
sus 304	60mesh	0.23mm	1m*15m	0.19mm	twill weave
sus 304	60mesh	0.23mm	1.2m*15m	0.19mm	plain weave
sus 304	80mesh	0.18mm	1m*15m	0.13mm	twill weave
sus 304	80mesh	0.12mm	1m*15m	0.19mm	plain weave
sus 304	100mesh	0.10mm	1m*15m	0.154mm	plain weave
sus 304	100mesh	0.10mm	1.2m*15m	0.154mm	plain weave
sus 304	120mesh	0.08mm	1m*15m	0.131mm	plain weave
sus 304	120mesh	0.08mm	1.2m*15m	0.131mm	plain weave
sus 304	150mesh	0.06mm	1m*15m	0.109mm	plain weave
sus 304	150mesh	0.06mm	1.2m*15m	0.109mm	plain weave
sus 304	180mesh	0.05mm	1m*15m	0.09mm	plain weave
sus 304	180mesh	0.06mm	1m*15m	0.08mm	twill weave
sus 304	200mesh	0.05mm	1m*15m	0.07mm	plain weave
sus 316	250mesh	0.04mm	1m*15m	0.06mm	plain weave
sus 316	280mesh	0.04mm	1m*15m	0.05mm	plain weave
sus 316	300mesh	0.04mm	1m*15m	0.04mm	plain weave
sus 316	325mesh	0.04mm	1m*30m	0.035mm	plain weave
sus 316	350mesh	0.04mm	1m*30m	0.032mm	plain weave
sus 316	400mesh	0.03mm	1m*15m	0.03mm	plain weave
sus 316	500mesh	0.025mm	1m*30m	0.025mm	plain weave
